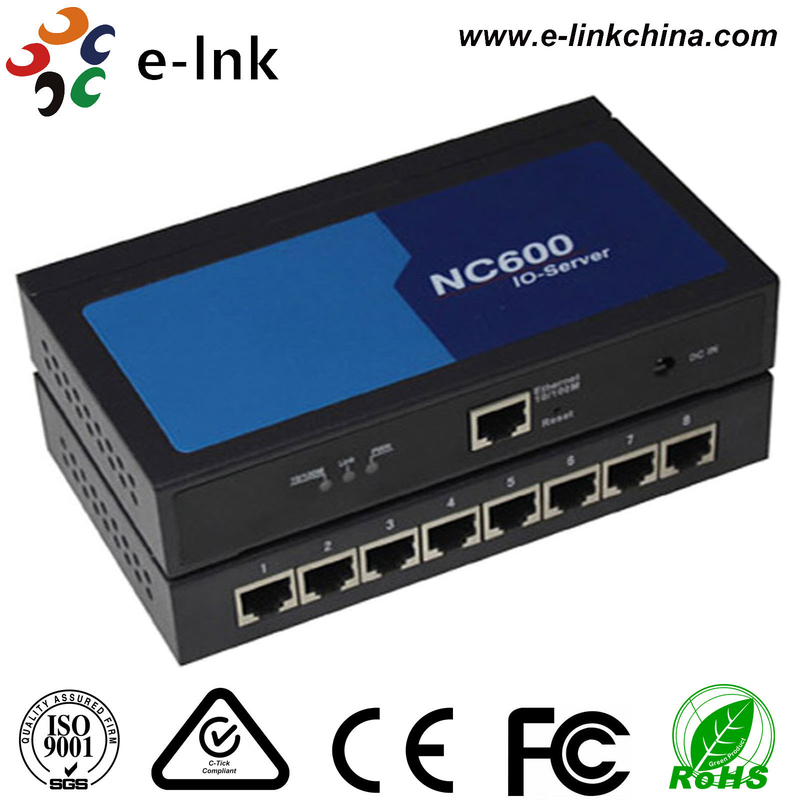

RS-232/422/485 To Ethernet Server

Name: RS-232/422/485 To Ethernet Server
Brand: E-link China Technology Co.,LTD
SKU: LNK-NC608
Price: 369.00 USD
Availability: InStock

Einzelheiten zum Produkt

Place of Origin: China

Markenname: E-link

Zertifizierung: ISO9001, CE, FCC, RoHS

Model Number: LNK-NC608

Dokument: E-link 8Ch RS-232 422 485 T....0.pdf

Zahlungs- und Versandbedingungen

Minimum Order Quantity: 1pcs

Preis: Verhandlungsfähig

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

Beste Preis

Kontaktieren Sie uns jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:

Working temperature:	0 to 55°C (32 to 131°F)	L×W×H:	160 x 89 x 29 mm
Warranty:	5 years	Power:	Input Voltage: 5 / 12 /24/48VDC, Default:DC5V/2A
Linux Real TTY Drivers:	Linux 2.4.x, 2.6.x	Housing:	Meta

Working temperature:	0 to 55°C (32 to 131°F)
L×W×H:	160 x 89 x 29 mm
Warranty:	5 years
Power:	Input Voltage: 5 / 12 /24/48VDC, Default:DC5V/2A
Linux Real TTY Drivers:	Linux 2.4.x, 2.6.x
Housing:	Meta

Beschreibung

RS-232/422/485 To Ethernet Server

Product Advantages

· Following TCP/IP standard.

· 10/100M auto-sensing Ethernet

· 8 serial ports supporting RS-232/422/485

· Built-in 15 kV ESD surge protection for all serial signals

· Supporting modes: TCP realport/UDP realport/ Multi screens TTY/PPP dialout/PPP daemon/Line printer daemon/MCP/ Simple UDP/Group realport

· Configure via Telnet/Web

· Wide DC Input Range (DC5/12/24/48V)option

· Dimension(mm):160(L)X89(W)X29(H)

Overview

The LNK-NC600 is a serial port devices connected to the ability of one serial ports connected to the server, for the RS232/422/485 serial port types with 10 m /100m Ethernet, can centralized manage the dispersed serial devices, the host through the network and make them are simple convenient. Support HTTP, TCP, UDP, ARP, ICMP, DNS and DHCP protocol, supports Windows Native COM and network interruption automatically restore and connect.

Technical Indexes

Items	Description
CPU	32bit,100 MHZ
Memory	8M
Ethernet interface	Number of Ports:1 Speed:10/100 Mbps, auto MDI/MDIX Connector:8-pin RJ45 Magnetic Isolation Protection: 2.4 kV built-in Default IP address:192.168.0.233
Serial interface	Data Bits: 5, 6, 7, 8 Stop Bits: 1, 1.5, 2 Parity: None, Even, Odd, Space, Mark Flow Control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF Band rate: 300bps to 460.8 kbps
Serial Line Protection	5 kV ESD protection for all signals Terminator for RS-485: 120 Ω
Software	Network Protocols:ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP
	Configuration Options:Web Console, Telnet Console, Windows Utility
	Operating Mode: TCP realport,UDP realport,Multi screens TTY,PPP dialout,PPP daemon/Line printer daemon/MCP/ Simple UDP/Group realport
	Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded Linux Real TTY Drivers: Linux 2.4.x, 2.6.x
Storage Temperature/Humidity	-10℃ - 80℃/ 5% -90% RH(no condensation)
Physical Characteristics	Housing: Meta
	Dimensions: Without mounting kit: 160 x 89 x 29 mm With mounting kit: 160 x 89 x 29 mm
	Operating Temperature: Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) Storage Temperature: -40 to 75°C (-40 to 167°F) Ambient Relative Humidity: 5 to 95% (non-condensing)
Power	Input Voltage: 5 / 12 /24/48VDC, Default:DC5V/2A
Warranty	5 years

Ordering Information

Part No	Description of product
LNK-NC608	8xRS232,1x10/100M Ethernet port 8-port RS232 Device Server,15 KV ESD protection RS232 is RJ45 interface
LNK -NC608-4M	4xRS232,4xRS422/485,1x10/100M Ethernet port 4-port RS232,2-port RS422/485 Device Server,15 KV ESD protection R232/422/485 is RJ45 interface
LNK -NC608-8M	8xRS422/485,1x10/100M Ethernet port 8-port RS422/485 Device Server,15 KV ESD protection RS422/485 is RJ45 interface
LNK -NC608-8MD	8xRS422/485,1x10/100M Ethernet port 8-port RS422/485 Device Server,15 KV ESD protection RS422/485 is terminal interface
LNK -NC608B	8xRS232/422/485,1x10/100M Ethernet port 8-port RS232/422/485 Device Server,15 KV ESD protection RS232/422/485 is terminal interface
Notes	DC 5V/12V/24V/48V Power supply, you can choose 30cm RJ45 to DB9,You can choose RS232/422/485 is RJ45 or Terminal Interface
