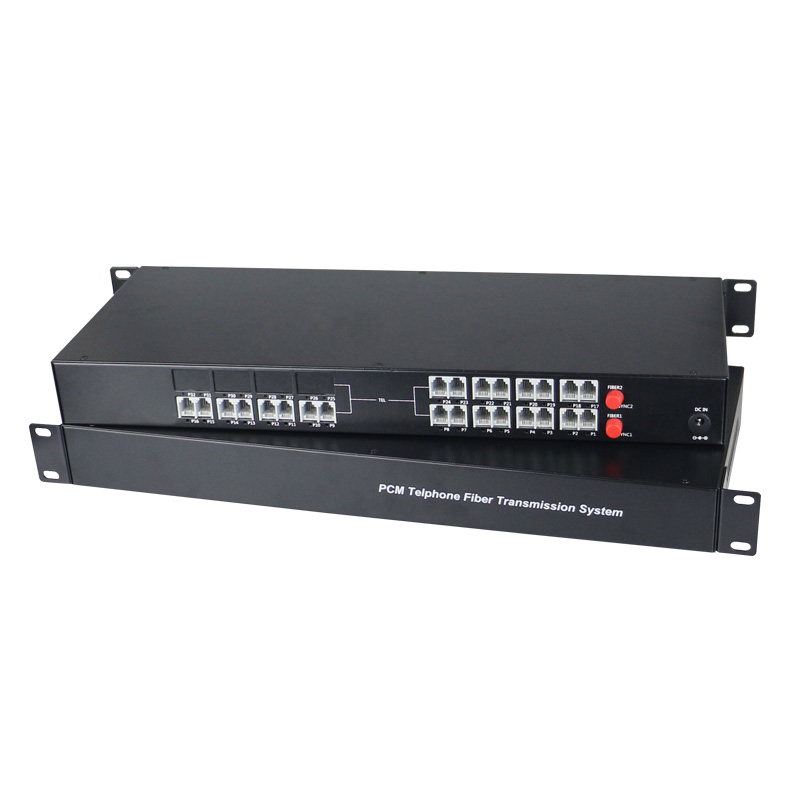

24Ch POTS(FXO/FXS)Telephone over Fiber Mux

Einzelheiten zum Produkt

Place of Origin: China

Markenname: E-link

Model Number: LNK-PCM24

Zahlungs- und Versandbedingungen

Minimum Order Quantity: 1 pcs

Preis: Verhandlungsfähig

Packaging Details: Carton Packaging

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Beste Preis
Kontaktieren Sie uns jetzt
Spezifikationen
Hervorheben:
Working temperature:
-35°~ 75°C
Storage temperature:
-40°~ 45°C
Working Humidity:
0%~95 % (no condensation)
Total power consumption:
2.5w(Input:DC12V 3A)
Code:
PCM code
Fiber Ports:
FC/UPC
Working temperature:
-35°~ 75°C
Storage temperature:
-40°~ 45°C
Working Humidity:
0%~95 % (no condensation)
Total power consumption:
2.5w(Input:DC12V 3A)
Code:
PCM code
Fiber Ports:
FC/UPC
Beschreibung
24Ch POTS(FXO/FXS)Telephone over Fiber Mux

24Ch POTS(FXO/FXS)Telephone over Fiber Mux

Advantages

standard RJ11 telephone interface

► 24 channel support voice access, Support Caller ID and Fax

► Voice port supports O port and S port, O port connects switch and S port connects user’s phone

► Support FXO / FXS ordinary telephone

► Support point-to-point, cascaded and distributed network connections, and SNR will not decline

► Power link to fiber optic, data status indication LED can monitor system health

► Industrial design, modular design allows flexible and reliable equipment



Overview

E-link 24 channel POTS (Plain Old Telephone System) phone lines over fiber converter / extender. This Voice over Fiber converter uses RJ-11C modular connectors for each copper pair connection. FXO type unit connects to a telephone line (PSTN) or PBX station line and has ability to detect ringing voltages and to act as a telephone. FXS type unit is the reciprocal unit and has ability to act as PSTN and connects to a telephone device.


Technical Indexes

Product Name

24 channel telephone over fiber converter

Product Model

LNK-PCM24 Series

Description

FXO/FXS Ordinary telephone

Telephone Ports

24 telephone port RJ11 port

Switch Terminal

Ordinary telephone or PBX, PBX (PBX),
public telephone outside the PSTN

FXS

Ringing voltage: 75V, ringing frequency: 25HZ

FXO

Second line input impedance:600Ω (hook),
return loss: 40db,
ring detection voltage:35V

Ring detection frequency

17HZ-60HZ,
second-line input impedance: 600Ω(hook),
return loss: 40 db

Broadband Voice

8KHZ

Connection

Point to point,
telephone to telephone,

telephone to switch

Code

PCM code

Fiber Ports

FC/UPC





Ethernet Ports (optional)





Interface rate: 10/100 Mbps, half/full duplex auto-negotiation

Interface Standard: Compatible with IEEE 402.3, IEEE 402.1Q (VLAN)

MAC Address Capability: 4096

Connector: RJ45, support Auto-MDIX

Transmission distance

Single-mode single fiber 20KM

Environmental Specifications

Operating Temperature:  -35° 75°C

Storage Temperature: -40° 45°C

Operating Humidity: 0%95%, non-condensing

Total power consumption

2.5w(Input:DC12V 3A)

Power supply

External power supply,
Input:AC110-240V 50/60Hz,
Output:12V 3A


Ordering Information

Model

Description

LNK-PCM24

Analog Telephone to F/O Converter: 24-Ch Telephone lines (FXO & FXS), FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs

LNK-PCM24-E

Analog Telephone to F/O Converter: 24-Ch Telephone lines (FXO & FXS) + 1-Ch 100M Ethernet, FC, Single Mode(9/125µm), 20KM, DC12V, used by pairs
