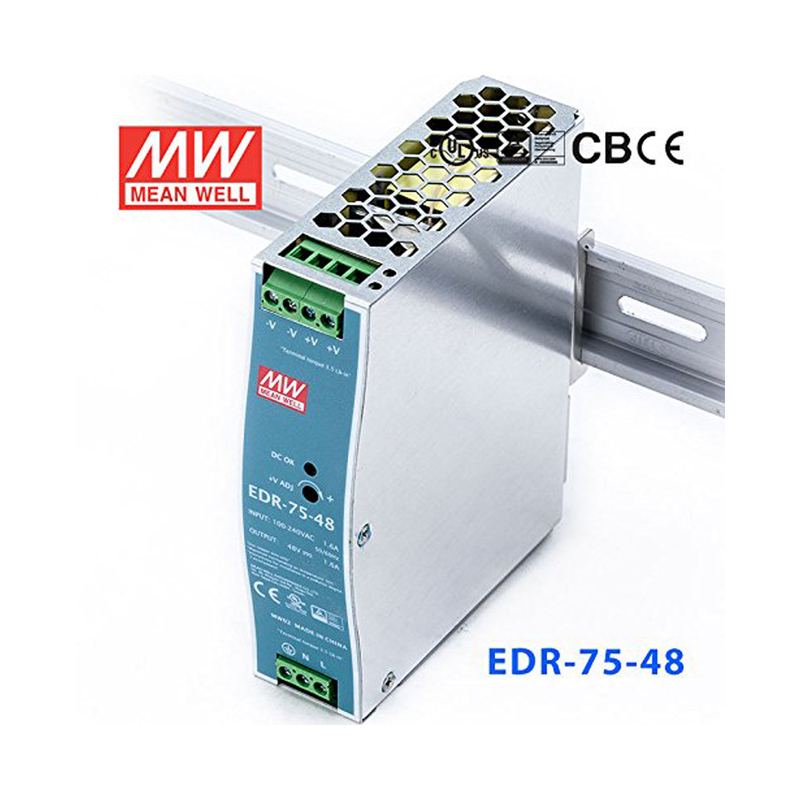

MEAN WELL 75W DIN Rail Power Supply 48V Industrial Grade UL508 Approved

Einzelheiten zum Produkt

Herkunftsort: China

Markenname: E-link

Zertifizierung: CE

Modellnummer: EDR-75-48

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1pc

Preis: USD30/PC

Verpackung Informationen: Industrieller Hutschiene-Stromversorgungs-Standard kartonieren das Verpacken

Lieferzeit: 7-10 Arbeitstage

Zahlungsbedingungen: L/C, T/T, Western Union, Moneygram, Paypal

Versorgungsmaterial-Fähigkeit: 1000000pcs/Monat

Beste Preis
Kontaktieren Sie uns jetzt
Spezifikationen
Hervorheben:
Input Voltage:
100-240V AC,50/60Hz, 1.45A
Power Output:
76.8 Watts,48V, 1.6A
Weight (kg):
0.51kg
Type:
DIN-Rail
Input Voltage:
100-240V AC,50/60Hz, 1.45A
Power Output:
76.8 Watts,48V, 1.6A
Weight (kg):
0.51kg
Type:
DIN-Rail
Beschreibung
MEAN WELL 75W DIN Rail Power Supply 48V Industrial Grade UL508 Approved

MEAN WELL 75W DIN Rail Power Supply 48V Industrial Grade UL508 Approved

Key Features & Technical Specifications:

✔️ Global Voltage Compatibility & Efficiency

  • Universal AC input (85-264VAC) full range support for worldwide industrial applications

  • High conversion efficiency with free air convection cooling system

  • Low power consumption design for energy-saving operation

✔️ Comprehensive Protection System

  • Multiple protection features: short circuit/overload/over voltage/over temperature

  • Built-in thermal management with automatic recovery function

  • Robust surge and spike protection for enhanced system security

✔️ Industrial Standards & Certification

  • UL 508 approved for industrial control equipment applications

  • EN61000-6-2 industrial immunity level for EMI/RFI protection

  • Meets international safety standards for industrial power systems

✔️ Reliability & Quality Assurance

  • 100% full load burn-in test ensures maximum reliability

  • 2-year manufacturer warranty with industrial-grade components

  • -30°C to +70°C wide operating temperature range

  • IP20 protection rating for basic industrial environment safety

✔️ Easy Installation & Maintenance

  • Compatible with DIN rail TS-35/7.5 & TS-35/15 standard mounting systems

  • Tool-less installation design for quick deployment

  • Maintenance-free operation with free air convection cooling

Primary Application Scenarios:

  • Industrial Automation & Control Systems

    • Powers PLCs, motor controllers, industrial PCs, and HMI panels in manufacturing environments

    • Provides stable voltage for sensors, transducers, and measurement equipment in process automation

    • Supports robotic systems and motion control applications in automated production lines

  • Telecommunications Infrastructure

    • Powers network equipment including fiber optic transceivers, media converters, and industrial Ethernet switches

    • Provides DC power for 5G small cells, wireless access points, and base station equipment

    • Supports operation in telecom cabinets, data distribution frames, and network enclosures

  • Security & Surveillance Systems

    • Powers IP camera systems, NVRs, and access control systems requiring 48V DC input

    • Supports license plate recognition systems and security monitoring equipment

    • Ideal for perimeter protection and building security applications

  • Transportation & Infrastructure Applications

    • Powers signaling equipment and control systems in railway and traffic management

    • Supports electric vehicle charging infrastructure and battery management systems

    • Provides reliable power for LED lighting systems and information displays

Technical Indexes

MEAN WELL/EDR-75-48
Dimensions (W x H x D) 32x 125.2 x 102 mm
Weight (kg) 0.51kg
Mounting Type DIN-Rail Mount
Input Voltage 100-240V AC,50/60Hz, 1.45A
Power Output 76.8Watts,48V, 1.6A
Primary Type AC-DC
Type Industrial
Temperature -20~70 degrees C
Installation DIN rail TS-35/7.5 or 15


Ordering Information

Model Description
EDR-75-48 MEAN WELL 75W/1.6A 48VDC Single Output Industrial DIN Rail Power Supply


MEAN WELL 75W DIN Rail Power Supply 48V Industrial Grade UL508 Approved 0
