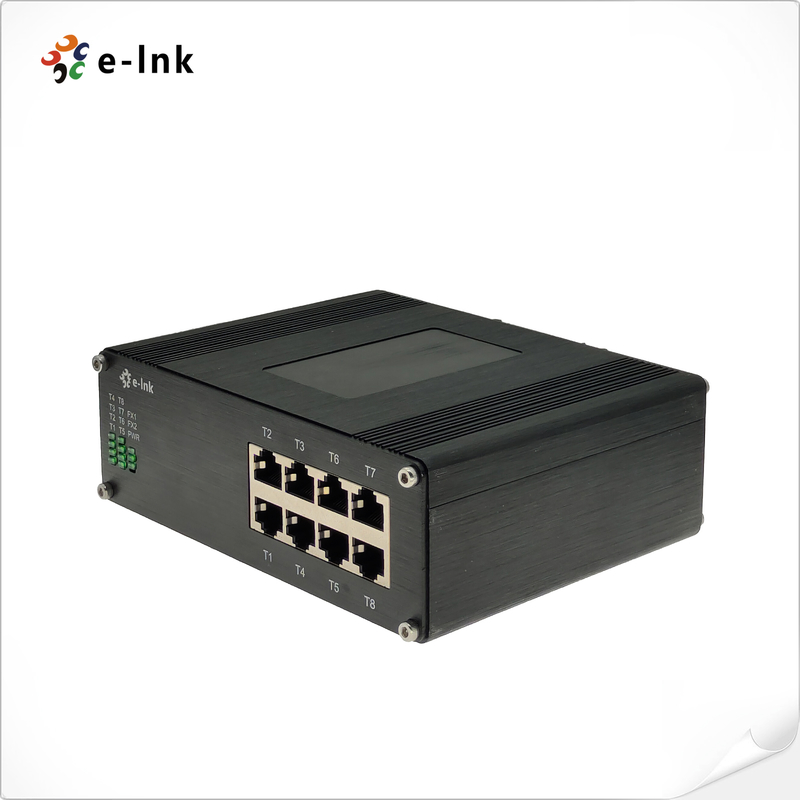

Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch

Name: Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch
Brand: E-link China Technology Co.,LTD
SKU: LNK-IMC008GP
Price: 102.00 USD
Availability: InStock

Einzelheiten zum Produkt

Place of Origin: China

Markenname: E-link

Zertifizierung: iso9001

Model Number: LNK-IMC008GP

Dokument: E-link LNK-IMC008GP Industr....0.pdf

Zahlungs- und Versandbedingungen

Minimum Order Quantity: 1pcs

Preis: US$96-US$109

Packaging Details: Managed PoE Switch Standard Carton Packaging

Delivery Time: 3-5 working days

Payment Terms: T/T,Western Union,MoneyGram,PayPal

Supply Ability: 1000/Month

Beste Preis

Kontaktieren Sie uns jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:

Switch Fabric:	16 Gbps	Connector:	8 x RJ45
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)	Max. Power per Port:	30W Max per port (Alternative B Mode)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)	Dimensions (WxDxH):	150 x 115 x 50 mm

Switch Fabric:	16 Gbps
Connector:	8 x RJ45
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Max. Power per Port:	30W Max per port (Alternative B Mode)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Dimensions (WxDxH):	150 x 115 x 50 mm

Beschreibung

Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch

Model: LNK-IMC008GP

Overview

The LNK-IMC008GP is a high-performance Unmanaged Industrial 8-port 10/100/1000BASE-

T (PoE+) Ethernet Switch, specifically engineered to deliver both power supply and gigabit-level

connectivity for industrial networking environments without the need for complex configuration.

As an Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch, it features 8

PoE-enabled TP ports, making it an ideal solution for small to medium-scale industrial deployments

that require high-speed data transmission, integrated power delivery, and simplified operation.

The 8 TP (RJ45) ports, equipped with PoE+ functionality, support 10/100/1000Base-T(X) standards

and auto MDI/MDI-X connection, allowing them to supply both power and data to a variety of Powered

Devices (PDs) such as high-resolution IP cameras, enterprise-grade wireless access points, and industrial

sensors via a single RJ-45 cable. This integration eliminates the need for separate power lines, streamlining

network infrastructure and reducing installation complexity in industrial settings.

Designed to meet critical industrial standards, this unmanaged switch exhibits strong resistance

against vibration and shock, ensuring uninterrupted operation even in high-activity environments like

factory floors, logistics hubs, and outdoor industrial zones. Its wide operating temperature range further

enhances adaptability, allowing reliable performance in extreme thermal conditions. Compliant with

industry regulations and validated through rigorous testing, the Unmanaged Industrial 8-port 10/100/1000

BASE-T (PoE+) Ethernet Switch offers user-friendly operation, eliminating the need for specialized technical

expertise during setup. This combination of gigabit performance, PoE+ capability, durability, and ease of use

makes it a highly practical choice for integrating networks with diverse powered devices across remote

locations, catering to the needs of businesses seeking a reliable and cost-effective industrial networking solution.

Features

► 8x10/100/1000Base-TX with PoE+

► Support IEEE802.3at PoE(30W per port)

► RJ45 Port Supports 10/100/1000Mbps-Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Supports 802.3x Flow control

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports 16K MAC address

► 2M bits frame buffer memory

► Supports DIN-Rail and Wall-mount installation

► Redundant Power Inputs

► -40°C to 80°C (-40°F to 176°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3x Flow control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2M bits
Switch Fabric:	16 Gbps
Max Packet Length:	10K Bytes
Address Table Size:	16K MAC Addresses
Interface
Connector:	8 x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	245W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at
PoE:
Port:	RJ45 Port 1 ~ Port 8
Max. Power per Port:	30W Max per port (Alternative B Mode)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet (Per Port):	Link/Activity
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC008GP	Industrial 8-port 10/100/1000BASE-T (8-port PoE+) Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.

Application

Unmanaged Industrial 8-port 10/100/1000BASE-T (PoE+) Ethernet Switch 0
