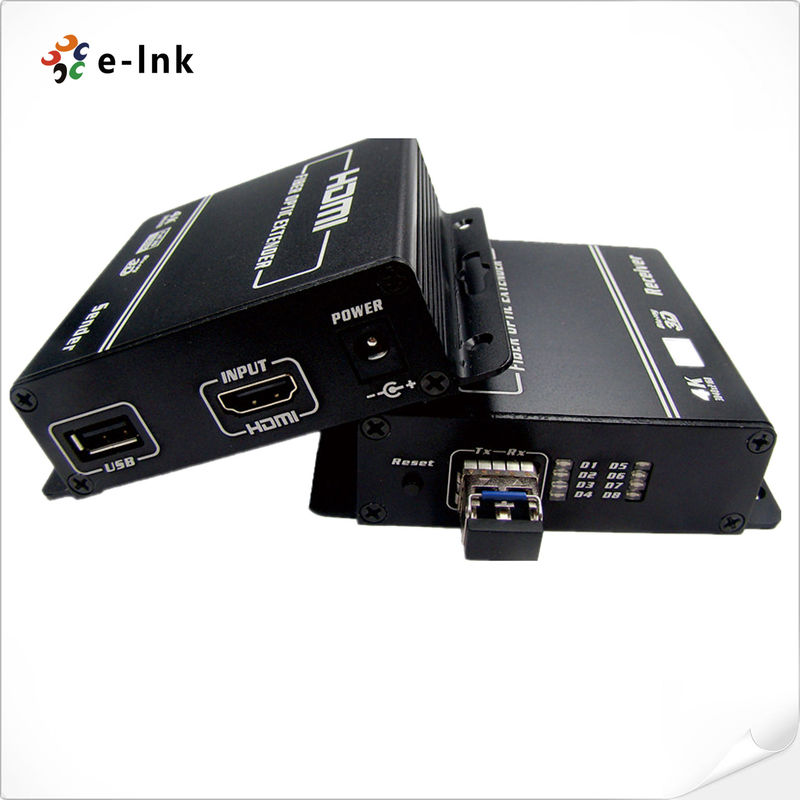

1080P HDMI KVM Fiber Optic Extender

Name: 1080P HDMI KVM Fiber Optic Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-1240KVM
Price: 134.00 USD
Availability: InStock

Einzelheiten zum Produkt

Place of Origin: China

Markenname: E-link

Zertifizierung: ROHS,FCC,CE

Model Number: LNK-1240KVM

Zahlungs- und Versandbedingungen

Minimum Order Quantity: 1 pcs

Preis: Verhandlungsfähig

Packaging Details: Extender Standard Export Package

Delivery Time: 3-12 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,Paypal

Supply Ability: 1000 pcs/month

Beste Preis

Kontaktieren Sie uns jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:

Keywords:	Fiber Extender	Operating Temperature:	-32° to +122° F. (-0° to +50° C)
Dimension (LxWxH):	89mm x 104 mm x 28.3 mm	Weight:	200 g
Power Consumption:	3 watts	The warranty:	2 year warranty

Keywords:	Fiber Extender
Operating Temperature:	-32° to +122° F. (-0° to +50° C)
Dimension (LxWxH):	89mm x 104 mm x 28.3 mm
Weight:	200 g
Power Consumption:	3 watts
The warranty:	2 year warranty

Beschreibung

1080P HDMI KVM Fiber Optic Extender

1080P HDMI KVM Fiber Optic Extender Advantages

► Real Time Transmission, HDCP 1.2 compliant

► Supports DVI 1.0 and HDMI v1.3

► Supports resolutions up to1920*1080/60P

► Supports 1920*1080/60P resolution with color depth up to 24 bits/pixel

► Supports HDMI bit-rates up to 2.25Gbps color, 6.75Gbps total, CEC are NOT supported!

► Support USB Keyboard and USB Mouse

► LPCM 7.1, Dolby® TrueHD, and DTS-HD Master Audio™

► Built-in EQ(Receiver), Plug and Play, Surface-mountable

► Up to 300m distance by OM3-300(Custom Available)

► Low RFI / EMI profile for sensitive applications

1080P HDMI KVM Fiber Optic Extender Overview

The LNK-1240KVM series is a high performance 1080P HDMI KVM Fiber Optic Extender that transmits high resolution DVI / HDMI signals over extreme distances using 2 cores fiber. This extender supports HDMI v1.3 signals with resolutions up to 1080P (1920x1080/60p) over cable distances up to 300m (Multimode Fiber) or 10km (Single Mode Fiber).

1080P HDMI KVM Fiber Optic Extender Technical Indexes

Performance
Compliance	HDMI v1.3
Maximum Pixel Clock Frequency	225 MHz
Maximum Video Bit Rate	2.25 Gbps
Supported Color Depth	24-bit
Supported Resolutions	1920x1080/60P
Digital Audio Support	7.1 channel LPCM, 192 kHz, 24-bit audio capability
Connections	Description
HDMI Input / Output	1x HDMI Type-A Female connector
Optical	1x SFP+ port
Cable
Fiber Cable Type / Max. Length	50/125μ OM3-300 Multi-Mode Fiber: ≤ 1,000 ft. (≤ 300 meters) 9/125μ Single Mode Fiber: ≤ 10KM
Extended function
KM Support	USB Keyboard x 1 / USB Mouse x1
CEC Support	CEC are NOT supported!
DDC Support
Mechanical
Construction	High-impact Alufer enclosure
Dimensions (L x W x H)	89mm x 104 mm x 28.3 mm
Net Weight	200 g
Environmental
Operating Temperature	-32° to +122° F. (-0° to +50° C)
Storage Temperature	-40° to +185° F. (-40° to +85° C)
Operating Humidity	5% to 80% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
Power Requirements
External AC Power Adapter	Input: 100-240VAC / 50-60Hz 0.2A Output: 5VDC, 2.0A
Power Consumption	3 watts
Warranty
Limited Warranty	2 year warranty

1080P HDMI KVM Fiber Optic Extender Ordering Information

Model	Description
LNK-1240KVM -T	1080P HDMI KVM Fiber Optic Extender Transmitter
LNK-1240KVM -R	1080P HDMI KVM Fiber Optic Extender Receiver

1080P HDMI KVM Fiber Optic Extender 1
