Micro Mini 4K HDMI Fiber Extender with External Audio

Name: Micro Mini 4K HDMI Fiber Extender with External Audio
Brand: E-link China Technology Co.,LTD
SKU: LNK-MHA4K-Serie
Price: 134.00 USD
Availability: InStock

Einzelheiten zum Produkt

Herkunftsort: CHINA

Markenname: E-link

Zertifizierung: CE, FCC, RoHS

Modellnummer: LNK-MHA4K-Serie

Dokument: E-link LNK-MHA4K Series Mic....0.pdf

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1 PCs

Preis: Verhandlungsfähig

Verpackung Informationen: Kartonverpackung

Lieferzeit: 3-12 Arbeitstage

Zahlungsbedingungen: L/C, T/T, Western Union, Moneygram, Paypal

Versorgungsmaterial-Fähigkeit: 1000 PCs/Monat

Beste Preis

Kontaktieren Sie uns jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                      External Audio HDMI Fiber Extender, Micro Mini HDMI Fiber Extender, 4K HDMI Fiber Extender


Stromversorgung:	DC 5~12V	Betriebstemperatur:	-10 zu + 60°C
Lagertemperatur:	-20 bis + 85°C	Luftfeuchtigkeit:	5% bis 90% RH (nicht kondensierend)
Gewicht:	60 g	Abmessung (WxDxH):	2,87 x 1,73 x 0.69in (73x44x17mm)

Stromversorgung:	DC 5~12V
Betriebstemperatur:	-10 zu + 60°C
Lagertemperatur:	-20 bis + 85°C
Luftfeuchtigkeit:	5% bis 90% RH (nicht kondensierend)
Gewicht:	60 g
Abmessung (WxDxH):	2,87 x 1,73 x 0.69in (73x44x17mm)

Beschreibung

Micro Mini 4K HDMI Fiber Extender with External Audio

Advantages

► HDMI 1.4a and HCCP1.2 Support

► Uncompressed transmission, No delay, No losses

► DDC CEC HPD Signal Support

► Data rate up to 10.3Gbps

► Transmission distance up to 80km over fiber cable

► Supports All Modes up to 4K*2K@30Hz Resolution

► Support external stereo audio

► Hot-Pluggable, EMI/RFI Resistant

► Miniature form factor for ease of use and installation

► 850nm VCSEL and PIN Photo detector

► Operating Case Temperature: -10~60°C

Overview

The LNK-MHA4K Series 4K HDMI Fiber Extender are designed to support transmission of an uncompressed lossless HDMI 1.4a signal and stereo audio over optical fiber up to distances of 80km, at a resolution of 4Kx2K.

The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signa

Technical Indexes

Type of Extender	Fiber Transmitter for HDMI signal over Optical Fiber Cable
Input Signals	HDMI
Connector	Female HDMI type A
Signal Support	HDMI 1.4a HDMI format standard and HDCP compliant
Video Support	1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Color space, 420, 400
Dynamic EDID	Plug & Play, no need to learn
Audio Interface	3.5MM external stereo audio
Fiber Connector	SFP/LC
Bandwidth	10.3Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 to + 60°C
Storage Temperature	-20 to + 85°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5~12V DC
Power dissipation	<5W
Safety Approvals	CE, FCC, Rohs

Order Information

Model	Description
Model	Description
LNK-MHA4K-MM	Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-S20	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-S40	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-80	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
LNK- MHA4K-S80	Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

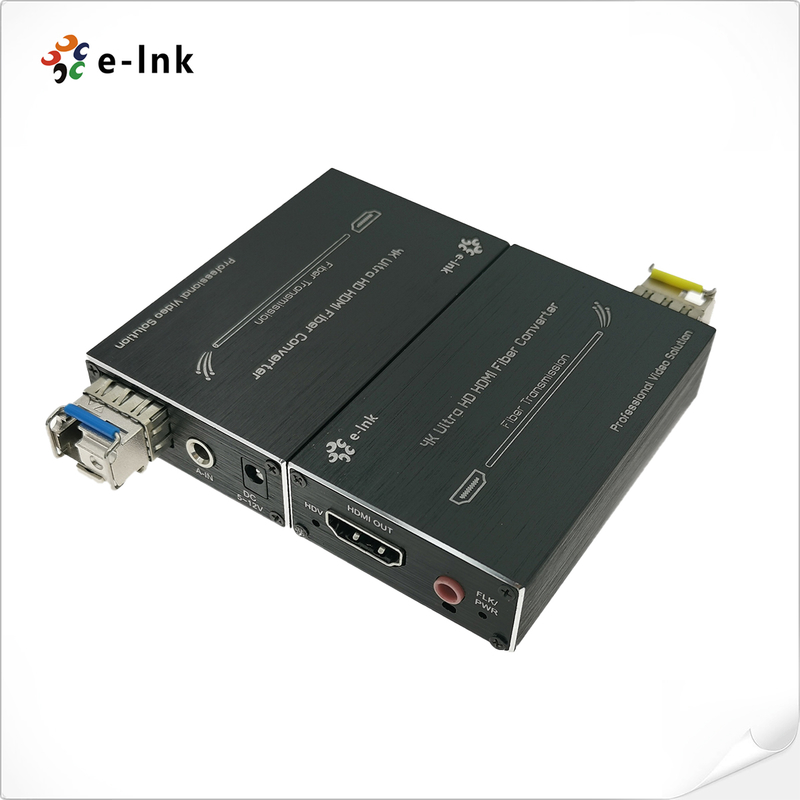

Micro Mini 4K HDMI Fiber Extender with External Audio 0

Application

Micro Mini 4K HDMI Fiber Extender with External Audio 1
