Uncompressed Audio-Video Fiber Optic Extender
, 4K Audio-Video Fiber Optic Extender
, 60Hz Audio-Video Fiber Optic Extender

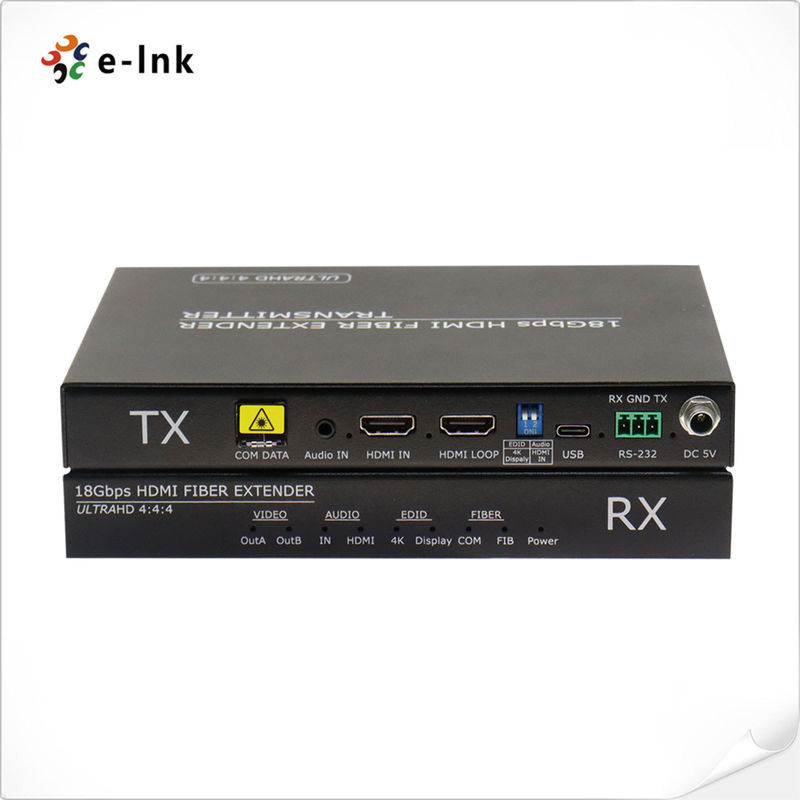

4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender
4K@60Hz 4:4:4 Uncompressed Audio-Video Fiber Optic Extender
Advantages
► Supports synchronous audio and video extension output.
► Supports video bandwidth up to 18Gbps.
► The transmitter features a loop-out interface (for sharing local signals) and external audio embedding capability.
► The receiver is equipped with a backup output interface and audio de-embedding output functionality.
► The receiver is equipped with a backup output interface and audio de-embedding output functionality.
► Transmission distance can reach up to 10 kilometers (using single-mode fiber).
► Supports video resolutions up to 4K2K@50/60Hz: 7680*2160 30Hz 4:4:4 transmission.
► Capable of custom non-standard resolution transmission, with a maximum width and height of 7680 pixels.
► HDMI audio formats supported: LPCM 2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.
► Complies with HDMI 2.0b, HDCP 2.2, and DVI 1.0 standards.
► Strong compatibility, widely applicable to LED/LCD/projection and other display devices.
Overview
LNK-4KH-UC-1A1R. HDMI signal input port used to connect to HDMI source devices such as PCs, Blu-ray DVD players, etc. HDMI video loop-out port, used to connect to HDMI display devices for sharing local high-definition audio and video signals, such as HDTV, projectors, etc.
This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal.
Technical Indexes
|
Transmitter Interfaces
|
|
Standards
|
1 x HDMI 2.0 Input (4K@60Hz)
|
|
|
1 x HDMI 2.0 Loop-out (4K@60Hz)
|
|
|
1 x Audio Input
|
|
|
2 x LC Fiber
|
|
|
1 x RS232
|
|
Receiver Interfaces
|
|
Standards
|
1000Base-SX/LX/LH
|
|
|
1 x Audio Output
|
|
|
2 x LC Fiber
|
|
|
1 x RS232
|
|
Video Resolution
|
|
HDMI
|
SMPTE:720P/1080P/2160P
|
|
|
VESA: 800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1400x1050/1600x1200/1920x1080/1920x1200/2048x1152/2560x1600/3840x1080/3840x2160/4096x2160/7680x2160/7680x1080/3840*2400/7680*1200/2160*4096
|
|
|
Supports custom non-standard resolutions
|
|
Refresh Rate
|
23.98/24/25/29.97/30/50/59.94/60Hz
|
Order Information
|
Model
|
Description
|
|
LNK-H4KU
|
4K@60Hz4:4:4Uncompressed Audio-Video Fiber Optic Extender,
1 x HDMI 2.0 Input (4K@60Hz)
1 x HDMI 2.0 Loop-out (4K@60Hz)
|
|
Video Resolution
|
Supports custom non-standard resolutions
|
|
RS-232 Pass-through Interface:
|
Transmits RS-232 command signals between the transmitter and receiver.
|
|
Power Interface
|
DC 5V/2A
|
Application
