Gigabit PoE Injector IEEE802.3af 15.4W

Name: Gigabit PoE Injector IEEE802.3af 15.4W
Brand: E-link China Technology Co.,LTD
SKU: Lnk-poe300
Price: 57.00 USD
Availability: InStock

Einzelheiten zum Produkt

Herkunftsort: China

Markenname: E-link

Zertifizierung: CE, FCC, RoHS，ISO9001

Modellnummer: Lnk-poe300

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1pcs

Preis: Negotiated

Verpackung Informationen: Standard -Exportpaket

Lieferzeit: 5-12 Arbeitstage

Zahlungsbedingungen: T/T, Paypal

Versorgungsmaterial-Fähigkeit: 1000 Prozent/Mund

Beste Preis

Kontaktieren Sie uns jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:
                                                                                                                                                                                                                                                                                              IEEE802.3af Gigabit PoE Injector, 15.4W Gigabit PoE Injector


Betriebstemperatur::	-10 ° C bis 50 ° C (14 ° F bis 122 ° F)	Eingangsspannungsbereich::	100-240V AC @50/60Hz.
Abmessungen (W × D × H)::	145 x 58 x 39 mm	Gewicht:	0,25 kg

Betriebstemperatur::	-10 ° C bis 50 ° C (14 ° F bis 122 ° F)
Eingangsspannungsbereich::	100-240V AC @50/60Hz.
Abmessungen (W × D × H)::	145 x 58 x 39 mm
Gewicht:	0,25 kg

Beschreibung

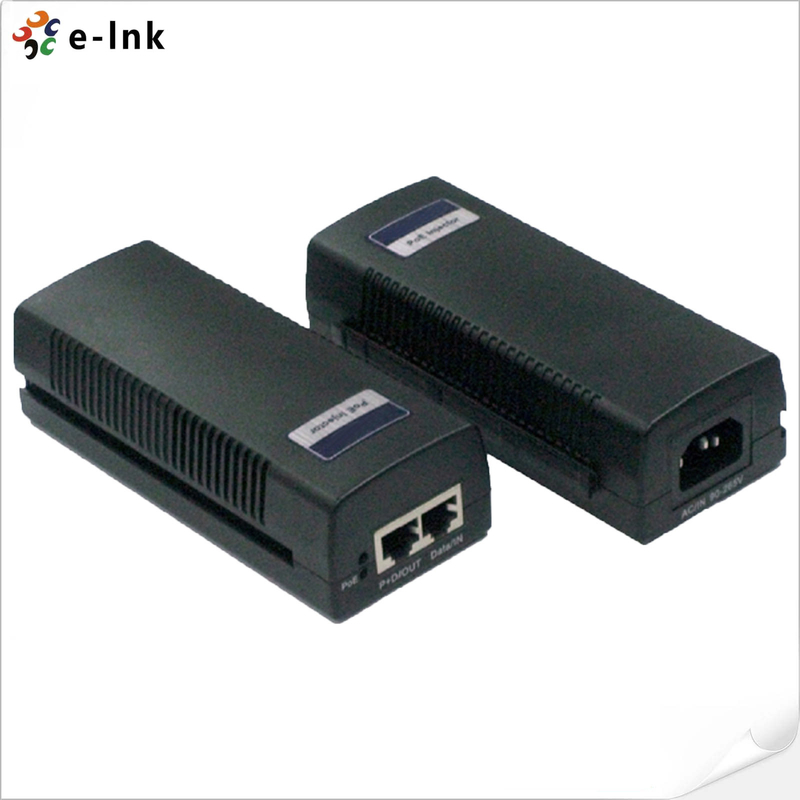

Gigabit PoE Injector IEEE802.3af 15.4W

Gigabit PoE Injector Advantage

► Up to 15.4W of PoE Power

► Compliant with IEEE802.3af Standard

► Support 10/100/1000Base-T

► Compliant with Limited Power Source (LPS)

► High Efficiency > 85%

► Low No Load Power Consumption < 0.5W

Gigabit PoE Injector Overview

LNK-POE300 15.4W-48V Gigabit POE Injector is a long-distance driving, fast network performing,

strong PoE Output IEEE802.3af certified midspan. It is a single port indoor PoE injector that can

provide up to 15.4W based on the IEEE 802.3af standard.

The midspans are ideal to power 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP

videophones, thin clients and other power Ethernet end terminals with 15.4W of power. The solutions

support IEEE 802.3af powered devices and are also backward compatible and safe to use with any

IEEE 802.3af terminal. With plug and-play installation, they are easy and cost effective to implement

leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future

proof network.

Gigabit PoE Injector Technical Indexes

Environmental
Operating Temperature:	-10°C to 50°C (14°F to 122°F)
Storage Temperature:	-20°C to 70°C (-4°F to 158°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Voltage Range:	100-240V AC @50/60Hz.
Output Voltage:	DC 48V
Power Consumption:	15.4 watts max.
PoE (Power over Ethernet)
Standard:	IEEE 802.3af
Port:	RJ45
Pin Assignment	Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-)
PoE Power Output	DC 48V/15.4-watt PoE via 2-pairs
LED Indicators
Power:	Power Status
PoE:	PoE Status
Dimensions (W×D×H):	145 x 58 x 39mm
Weight:	0.25Kg
Casing:	Plastic Case
Mounting Options:	Desktop

Gigabit PoE Injector Ordering Information

Model	Description
LNK-POE300	PoE Injector with Power Cord: 10/100/1000Mbps, IEEE 802.3af 15.4W
