IP67 Industrial Gigabit PoE Extender
, 1 x Input Gigabit PoE Extender
, 1 x Output Gigabit PoE Extender
IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)
IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)
Model:LNK-WP-IPE101
Overview
IP67 Waterproof Industrial Gigabit PoE Extender (model: LNK-WP-IPE101) is a high-performance
industrial-grade network device engineered for harsh environments. As an IP67 Waterproof Industrial
Gigabit PoE Extender, it integrates Power over Ethernet technology to deliver dual functionality:
extending Gigabit Ethernet signals and supplying PoE power, making it a critical component in
industrial network deployments.
This IP67 Waterproof Industrial Gigabit PoE Extender features a 1-in 1-out design with 90W power
handling capacity, capable of extending 1000Mbps Ethernet signals up to 100 meters—effectively
overcoming distance limitations in traditional network setups. Simultaneously, it provides a stable
standard PoE power supply of 50-57V to connected communication devices, supporting seamless
operation of power-hungry equipment like high-definition cameras and industrial sensors.
What defines this IP67 Waterproof Industrial Gigabit PoE Extender is its robust industrial-grade
construction: the housing is built with rugged materials, and the terminal adopts a sealed waterproof
design, both contributing to its IP67 protection rating—ensuring complete resistance to dust ingress
and water immersion up to 1 meter for 30 minutes. Further enhancing its industrial suitability, this IP67
Waterproof Industrial Gigabit PoE Extender operates reliably within an extreme temperature range of
-40°C to 80°C, withstanding humidity, vibration, and other harsh environmental factors.
Ideal for security surveillance systems (where outdoor or damp locations are common) and network
engineering projects (requiring long-distance, reliable connections), the IP67 Waterproof Industrial
Gigabit PoE Extender ensures uninterrupted high-speed data transmission and stable power supply,
making it an indispensable solution for industrial-grade network extension needs.
Features
► IP67-rated aluminum case
► 10/100/1000Mbps Ethernet Ports
► All ports support IEEE 802.3af/at/bt standards
► 1 x Input, 1 x Output
► Enables 100-meter extension of Ethernet connectivity with PoE
► Wall-mountable design
► Wide operating temperature range: -40°C to 80°C
► No external power cable required for installation
► Plug-and-play functionality
► Supports 2K MAC address table for connecting more
► 10kB jumbo frame support in 1000Mbps full-duplex mode
Technical Indexes
| Ethernet Port |
| PoE Input Port |
1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
| PoE Output Port |
1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands |
| Cascade Connection |
Support 3 grade |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af/at/bt |
| PoE Power Supply Type |
Mid-span and End-span |
| PoE Pin Assignment |
1/2(+), 3/6(-), 4/5 (+), 7/8 (-) |
| Input Voltage |
IEEE802.3 bt 90W |
| PoE Output Power |
Maximum 65W |
| Single Port PoE Output |
Maximum 60W |
| Switch Property |
| Standards |
IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet |
| Forwarding Modes |
Store and Forward |
| Transmission Distance |
Each extender extends by 100m, max 3 grade Cascade, total 400m. |
| MAC Table |
2K |
| Switching Capacity |
6Gbps |
| Packet Forwarding Rate |
4.46Mpps |
| Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Jumbo Frame |
10K bytes |
| Environment |
| Surge Immunity |
6KV, Standard: IEC |
| ESD Protection |
6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2 |
| Protection Level |
IP 67 |
| Explosion-Proof Rating |
IK10 |
| Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Operating Humidity |
0~95% (non-condensing) |
| Physical Parameter |

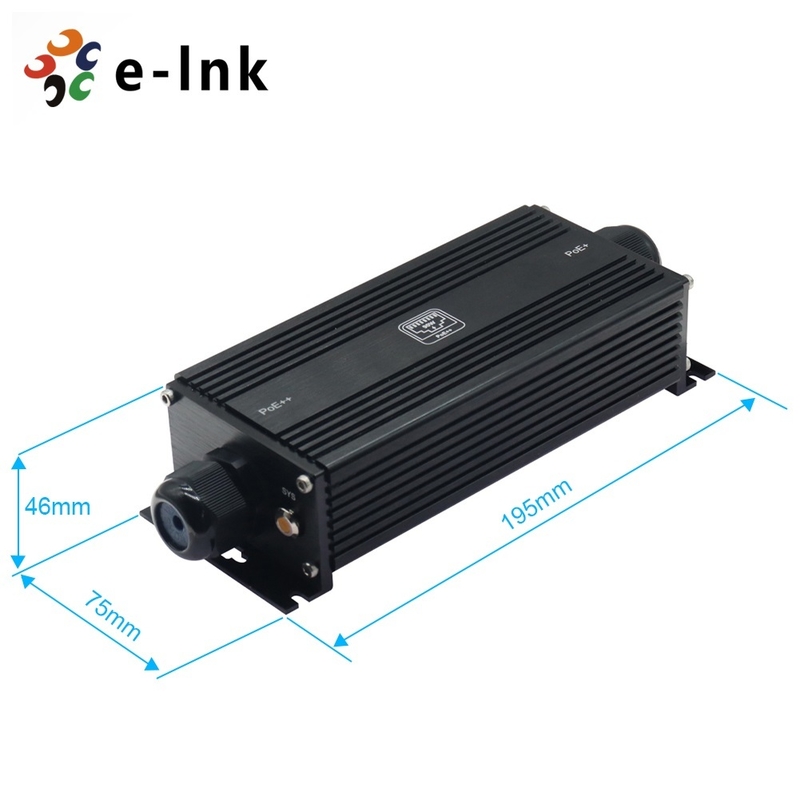

| Dimensions (WxDxH) |
195 x 75 x 46 mm |
| Weight |
0.6 kg |
| Casing |
Aluminum Case |
| Mounting Options |
Wall-mount |
| Certifications |
| Certifications |
CE, FCC, RoHS |
|
Ordering Information
|
Model
|
Description
|
|
LNK-WP-IPE101
|
IP67 Waterproof Industrial Gigabit PoE Extender 1 x Input 1 x Output
|
|
Mounting Options
|
Wall Mount Bracket is included.
|
