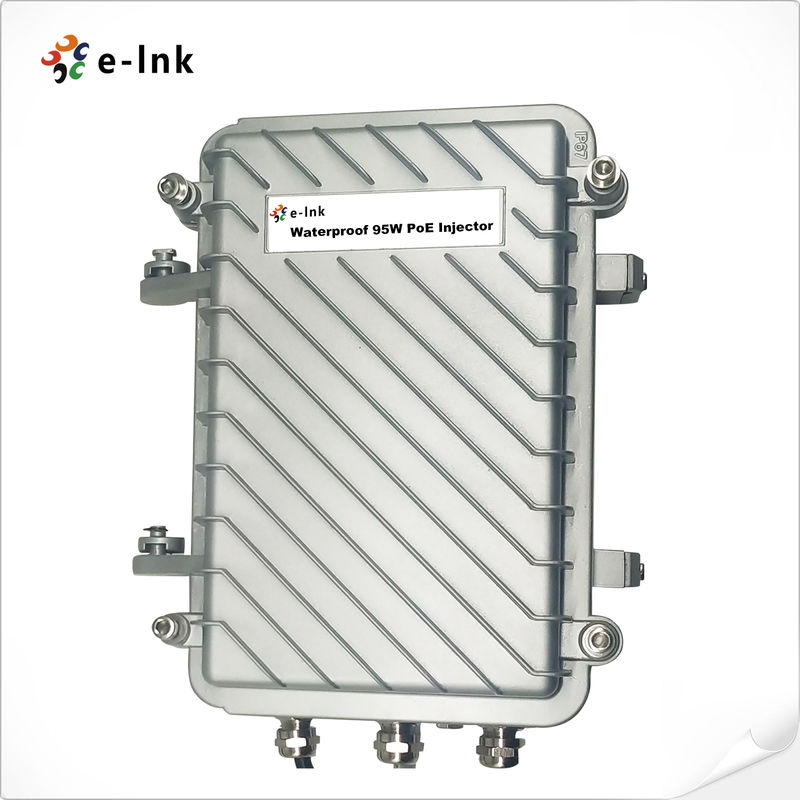

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection

Name: Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection
Brand: E-link China Technology Co.,LTD
SKU: LNK-WP901
Price: 57.00 USD
Availability: InStock

Einzelheiten zum Produkt

Place of Origin: China

Markenname: E-link

Zertifizierung: ROHS,FCC,CE

Modellnummer: LNK-WP901

Zahlungs- und Versandbedingungen

Minimum Order Quantity: 1 pcs

Preis: Verhandlungsfähig

Verpackung Informationen: Injector Standard Export Package

Lieferzeit: 3-12 Arbeitstage

Zahlungsbedingungen: L/C, T/T, Western Union, Moneygram, Paypal

Versorgungsmaterial-Fähigkeit: 1000 PCs/Monat

Beste Preis

Kontaktieren Sie uns jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                      Waterproof Industrial PoE Injector, 95W Industrial PoE Injector, 6KV Surge Protection PoE Injector


Schlüsselwörter:	POE-Injektor	Betriebstemperatur:	-40 °C bis 80 °C
Abmessungen (W x d x H):	260 mm x 210 mm x 80 mm	Gewicht:	1,5 kg
Luftfeuchtigkeit:	10% bis 90%, Nichtkondensation	Eingabemittel:	48~57VDC

Schlüsselwörter:	POE-Injektor
Betriebstemperatur:	-40 °C bis 80 °C
Abmessungen (W x d x H):	260 mm x 210 mm x 80 mm
Gewicht:	1,5 kg
Luftfeuchtigkeit:	10% bis 90%, Nichtkondensation
Eingabemittel:	48~57VDC

Beschreibung

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Advantages

► Protection level: IP67

► 6KV(10/700us) surge protection on LAN, PoE ports

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port(Data + Power)

► Support 95W LTPoE++ Power Sourcing Equipment

► Supports Wall-mount installation

► Environmentally hardened -40°C to 80°C(-40°F to 176°F) operating temperature

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Overview

LNK-WP901 provides 95W PoE power for remote PDs over 4 pairs output with 6KV (10/700us) surge protection, fully compliant solution for outdoor installations, guaranteeing 30 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, a long with data, over standard Ethernet cables, leaving network infrastructure completely unaltered.

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Technical Indexes

Parameter	Specifications
Standard	IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-Tx Fast Ethernet IEEE802.3ab 1000Base-T Gigabit Ethernet Support terminal equipment with IEEE802.3af/at/bt, PoE++ RoHS Compliance WEEE Compliance Protection Level: IP67, IEC60529, NEMA 250
Input & Output	Input : 48~57VDC Output: IEEE802.3bt 95W Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-) Data Speed: 10/100/1000Mbps
Working Environment	Operating Temperature: -40℃ to 80℃ Operating Humidity: 20% to 80%, non-condensation Storage Temperature: -40℃ to 85℃ Storage Humidity: 10% to 90%, non-condensation Operating Altitude: up to 5000meters
AC Surge Protection	Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV
PoE Surge Protection	Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV

Outdoor Waterproof Industrial 95W Gigabit PoE Injector with 6KV Surge Protection Ordering Information

Model	Description
LNK-WP901	Outdoor Waterproof Industrial 95W Gigabit PoE Injector with Surge Protection
