24-Port PoE Injector

Name: 24-Port PoE Injector
Brand: E-link China Technology Co.,LTD
SKU: LNK-POE224 LNK-POE224AT LNK-POE324 LNK-POE324AT
Price: 57.00 USD
Availability: InStock

Einzelheiten zum Produkt

Herkunftsort: China

Markenname: E-link

Zertifizierung: ROHS,FCC,CE

Modellnummer: LNK-POE224 LNK-POE224AT LNK-POE324 LNK-POE324AT

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1 PCS

Preis: Verhandlungsfähig

Verpackung Informationen: Injector Standard Export Package

Lieferzeit: 3-12 Werktage

Zahlungsbedingungen: L / C, T / T, Western Union, MoneyGram, Paypal

Versorgungsmaterial-Fähigkeit: 1000 Stück/Monat

Beste Preis

Kontaktieren Sie uns jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                      24-Port PoE Injector


Keywords:	POE-Adapter-Injektor	Betriebstemperatur:	0 bis +40 °C,
Abmessungen (W x D x H):	445X260X45 (H×T×B)	Eingangsleistung:	90-240V WECHSELSTROM, 50-60Hz
Gewicht:	5.5Kg	Luftfeuchtigkeit:	Maximum 95% relative Feuchtigkeit (kondensationsfrei)

Keywords:	POE-Adapter-Injektor
Betriebstemperatur:	0 bis +40 °C,
Abmessungen (W x D x H):	445X260X45 (H×T×B)
Eingangsleistung:	90-240V WECHSELSTROM, 50-60Hz
Gewicht:	5.5Kg
Luftfeuchtigkeit:	Maximum 95% relative Feuchtigkeit (kondensationsfrei)

Beschreibung

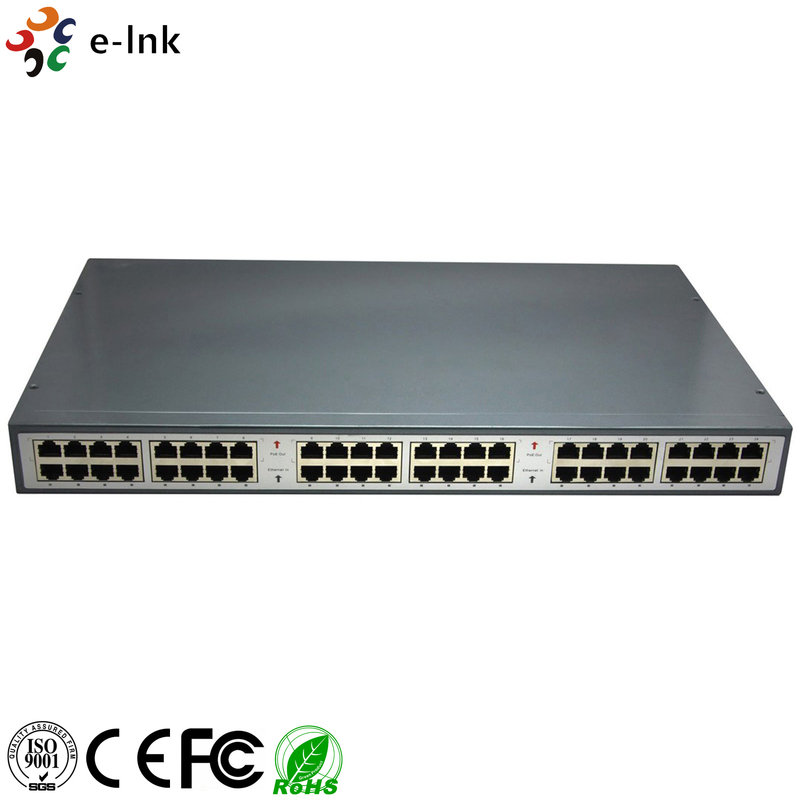

24-Port PoE Injector

24-Port PoE Injector Advantages

► Supply power to HD network surveillance cameras with Cat5e (PoE)

► 48x 10/100M RJ45 ports; 1x AC input port;24x PoE Ports

► AC input: 90V~264V

► Compatible with IEEE 802.3af standard(15.4W) , IEEE 802.3at standard(25.4W)

► Coming with the Ethernet network port and PoE output port

► Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method

► No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall

24-Port PoE Injector Overview

PoE Injector is also called as Power over Ethernet mid-span devices. 24-Port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 24x RJ45 PoE ports for these 24-Port PoE injectors. This mid-span have 24x2 Standard RJ45 network ports, one group of network ports will use for upper Ethernet switches or other network devices, another group of network ports will support POE power supply output with network data output.

24-Port PoE Injector Technical Indexes

Parameter	Specifications
Features	Conforms to IEEE802.3af standard RJ-45 Conforms to IEEE802.3af standard RJ-45
	Data Input Interface 24RJ-45 10/100Base-TX/ Data Input Interface 24RJ-45 10/100/1000Base-TX
	Output Port Power Cable Included
Data Rate	10/100Mbps 10/100/1000Mbps
Input Power	90-240V AC ,50-60Hz
Output Power	2415.4W Max IEEE802.3af 2430W Max IEEE802.3at
Wiring	Data provide over pairs 1/2(+) and 3/6(-)
Wiring	Power over spare pairs 4/5(+) and 7/8(-)
LED Display	YES
Operating Temperature	0 to +40°C,
Humidity	Max. 95% RH(non-condensing)
Dimension	445X260X45(H×D×W)
Weight	5.5KG

24-Port PoE Injector Ordering Information

Model	Decription
LNK-POE224	24-port PoE Adapter, 10/100Mbps, IEEE 802.3af 15.4W
LNK-POE224AT	24-port PoE Adapter, 10/100Mbps, IEEE 802.3at 30W
LNK-POE324	24-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3af 15.4W
LNK-POE324AT	24-port PoE Adapter, 10/100/1000Mbps, IEEE 802.3at 30W
