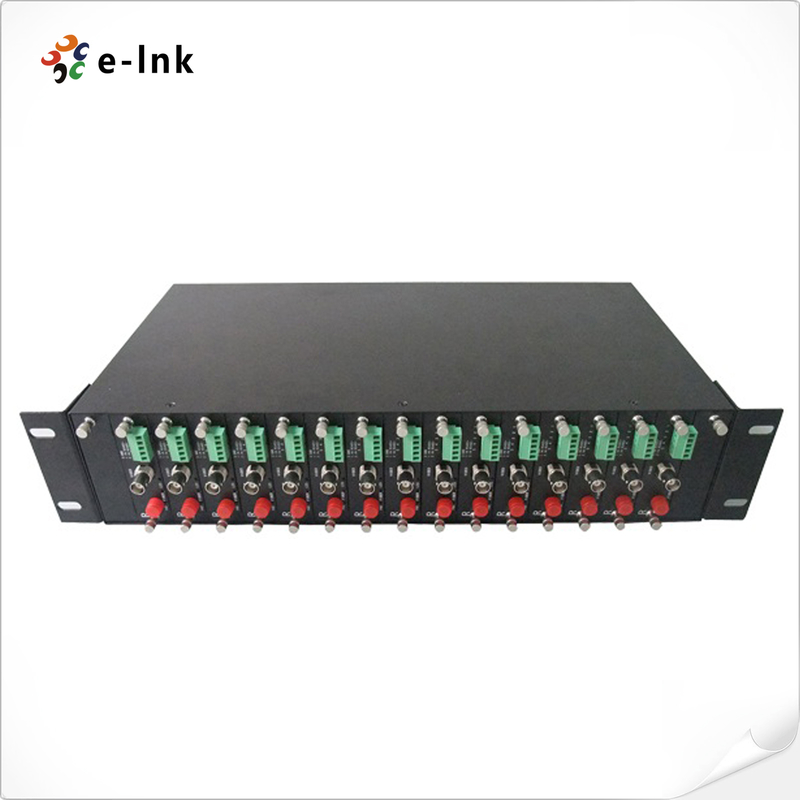

16-slot Video Converter Rack

Name: 16-slot Video Converter Rack
Brand: E-link China Technology Co.,LTD
SKU: LNK-V16
Price: 369.00 USD
Availability: InStock

Einzelheiten zum Produkt

Herkunftsort: China

Markenname: E-link

Zertifizierung: CE, RoHS, FCC, ISO9001

Modellnummer: LNK-V16

Dokument: E-link 16-Slot Video Conver....0.pdf

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1 Stück

Preis: Verhandlungsfähig

Verpackung Informationen: Industrieller PoE-Schalter-Standardkarton-Verpacken

Lieferzeit: 7-10 Arbeitstage

Zahlungsbedingungen: L / C, T / T, Western Union, MoneyGram, Paypal

Versorgungsmaterial-Fähigkeit: 100000 Stück/Monat

Beste Preis

Kontaktieren Sie uns jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:
                                                                                                                                                                                                                                                                                              Video Converter Rack


Gewicht:	5,4 kg	Dimension (mm):	423x230x90
Betriebsspannung:	DC 5V	Betriebstemperatur::	-30°C bis +55°C

Gewicht:	5,4 kg
Dimension (mm):	423x230x90
Betriebsspannung:	DC 5V
Betriebstemperatur::	-30°C bis +55°C

Beschreibung

16-slot Video Converter Rack

Product Advantages

► The configuration of active/standby power supply ensures uninterruptible operation of the system.

► Provide two power supplies, enabling the system can work under many operating environments;

► Supporting simultaneous operation of 1Ch or 2Ch Card-type Video Converters, which greatly improves system adaptability;

► Supports hot swapping;

Overview

LNK-V16 Series is a kind of cost-effective video converter rack (2U) widely used in the equipment room. 1-2 channel card type video converter developed by our company can be inserted into this rack, which total slots up to 16. It is furnished with two power supplies: main power supply and spare one, and supports its automatic switch-over. All of the card-type video converters installed in the chassis are hot swappable, which makes it unnecessary to power-down the chassis when replacing card-type video converters.

Technical Indexes

Parameter	Specifications
Number of slots	16
Structure	19” 2U rack
Card-type video converter support	1Ch or 2Ch
Power input	AC Voltage: AC 100~260V; frequency: 50/60 Hz
Power output	DC5V
MTBF	> 100,000 hours
Power configuration	Single power supply; or Dual power supply for warm backup mode
Dimension (mm)	423x230x90
Weight	5.4KG
LED indication	POWER (power supply)
Operating temperature	-30°C to +55°C
Storage Temperature	-40°C to +85°C
Relative humidity	5%~90% (non condensing)

Odering Information

Model	Description
LNK-V16	19" 2U Rack-Mount Chassis, 16-Slot, 16pcs 1CH Card-type Video Receiver can be put in the Chassis, Dual Power Supply
