12~48V DC Power Input Industrial 5G 60W PoE Injector

Name: 12~48V DC Power Input Industrial 5G 60W PoE Injector
Brand: E-link China Technology Co.,LTD
SKU: Die LNK-INJ501-60
Price: 57.00 USD
Availability: InStock

Einzelheiten zum Produkt

Herkunftsort: China

Markenname: E-link

Zertifizierung: CE, RoHS, FCC

Modellnummer: Die LNK-INJ501-60

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1 Stück

Preis: Verhandlungsfähig

Verpackung Informationen: PoE-Injektor-Adapter-Standardexportverpackung

Lieferzeit: 5-12 Werktage

Zahlungsbedingungen: L/C, T/T, Western Union, MoneyGram, Paypal

Versorgungsmaterial-Fähigkeit: 1000 Stück/MONAT

Beste Preis

Kontaktieren Sie uns jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                      48V DC PoE Injector, 60W PoE Injector, Industrial 5G PoE Injector


Schlüsselwort:	PoE-Injektor-Adapter	Eingangsleistung:	12~48VDC (Verteiler)
Energiestift:	4/5 (+), 7/8 (-)	Abmessungen (WxDxH):	95 x 70 x 30 Millimeter
Gewicht:	0.25kg	Montageoptionen:	DIN-Schiene / Wandmontage

Schlüsselwort:	PoE-Injektor-Adapter
Eingangsleistung:	12~48VDC (Verteiler)
Energiestift:	4/5 (+), 7/8 (-)
Abmessungen (WxDxH):	95 x 70 x 30 Millimeter
Gewicht:	0.25kg
Montageoptionen:	DIN-Schiene / Wandmontage

Beschreibung

12~48V DC Power Input Industrial 5G 60W PoE Injector

12~48V DC Power Input Industrial 5G 60W PoE Injector

PoE Injector Adapter Advantages

► 12~48V DC Power Input

► 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)

► Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment

► Support 10/100/1000/2.5G/5G Base-TX

► Extensive LED indicators for PoE diagnostics

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Forward
	Half-duplex, Full-duplex
Forward Filter Rate:	7,440,000pps (5Gbps)
Cabling:	10/100/1000/2.5G/5G Base-T: Cat7 or above
Maximum Distance:	Cat7 UTP up to 30m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	65W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	60W Max per port (Alternative B Mode)

Overview

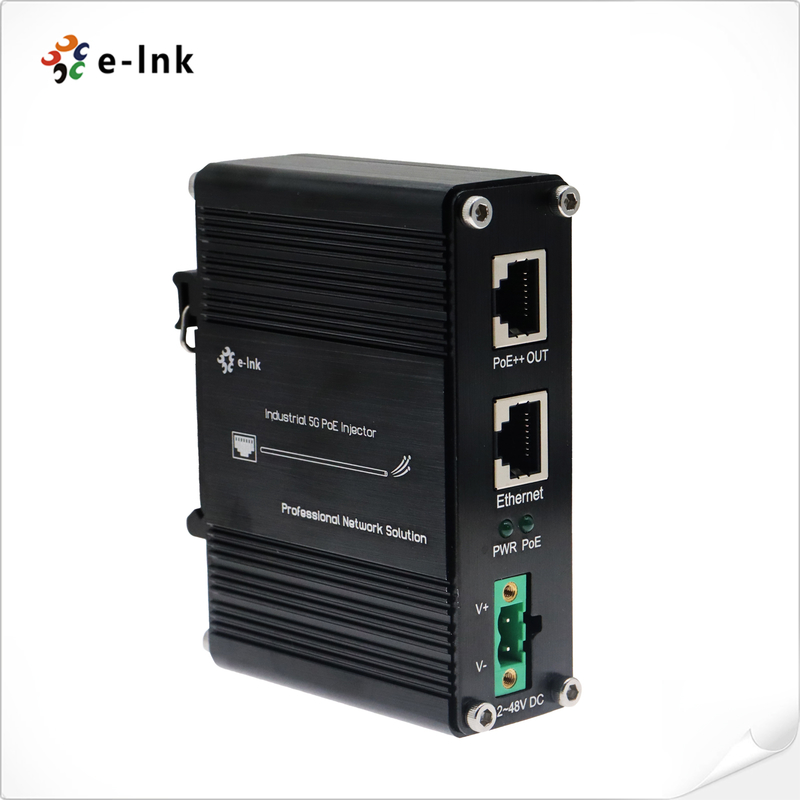

The LNK-INJ501-60 product is a Hardened 5G High Power 60W PoE Injector allows you to connect the IEEE 802.3 af/at PoE

device such as camera and access point with a non PoE LAN switch within the distance of 30m.

Application

12~48V DC Power Input Industrial 5G 60W PoE Injector 0

Ordering Information

Model	Description
LNK-INJ501-60	12~48VDC Power Input Industrial 5G 60W PoE Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
