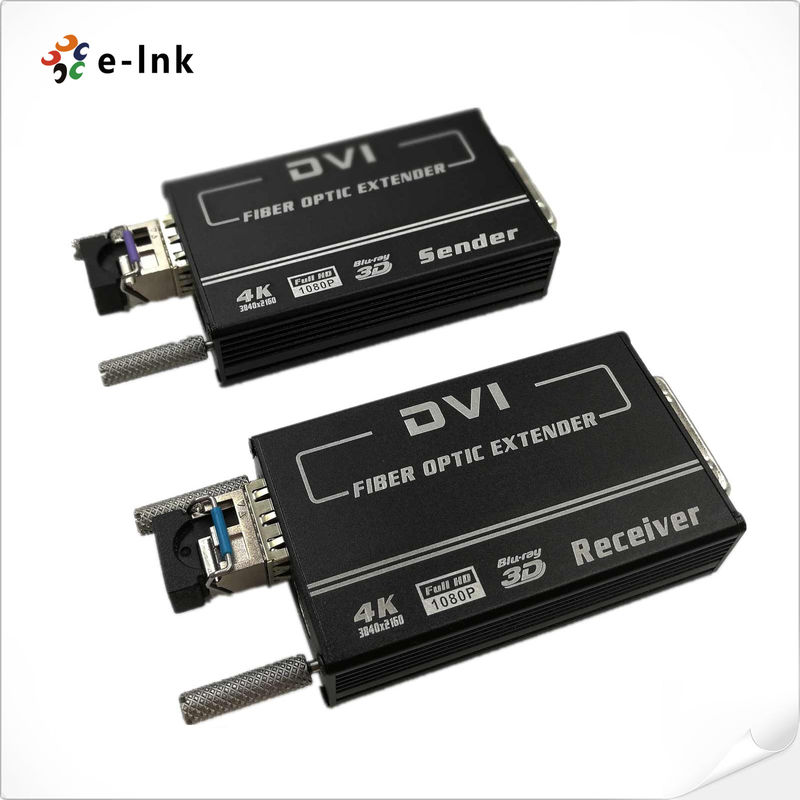

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID

Name: Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID
Brand: E-link China Technology Co.,LTD
SKU: LNK-D4K-MM
Price: 229.00 USD
Availability: InStock

Einzelheiten zum Produkt

Herkunftsort: China

Markenname: E-link

Modellnummer: LNK-D4K-MM

Dokument: E-link LNK-D4K-MM Mini 4Kx2....0.pdf

Zahlungs- und Versandbedingungen

Min Bestellmenge: 1 PCS

Preis: Verhandlungsfähig

Verpackung Informationen: Kartonverpackung

Lieferzeit: 3-12 Werktage

Zahlungsbedingungen: L / C, T / T, Western Union, MoneyGram, Paypal

Versorgungsmaterial-Fähigkeit: 1000 Stück/Monat

Beste Preis

Kontaktieren Sie uns jetzt

Spezifikationen

Beschreibung

Spezifikationen

Hervorheben:
                                                                                                                                                                                                                                                                                                                                                                                                      Auto EDID DVI Fiber Transceiver, Mini DVI Fiber Transceiver, 300M DVI Fiber Transceiver


The warranty:	1-year warranty	Dimensions (WxDxH):	69mm x 42 mm x 18.2 mm
Operating Temperature:	32° to +112° F. (0° to +50° C)	Storage Temperature:	-40° to +185° F. (-40° to +85° C)
Fiber Cable:	50/125μ OM3 Multi-Mode Fiber:≤300m	EDID Support:	Support EDID pass-through

The warranty:	1-year warranty
Dimensions (WxDxH):	69mm x 42 mm x 18.2 mm
Operating Temperature:	32° to +112° F. (0° to +50° C)
Storage Temperature:	-40° to +185° F. (-40° to +85° C)
Fiber Cable:	50/125μ OM3 Multi-Mode Fiber:≤300m
EDID Support:	Support EDID pass-through

Beschreibung

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID

Advantages

► Support DVI 1.0 and HDMI v1.4

► Support EDID pass-through.

► Support resolutions up to 3840x2160/30P

► 7.1 channel LPCM, 192 kHz, 24-bit

► Support 3840*2160/60P(YUV 420)

► Plug and Play ,Built-in EQ(Receiver)

► Support 4K/30P@ Single-Link

► Two fiber,2-ways

► Bandwidth up to 10.2 Gbps

► Up to 300m distance by Multimode Fiber

► Support the HDCP 1.4

► Low RFI / EMI

► Support 3D TV pass-through

► Surface-mountable

Overview

E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.

The LNK-D4K-MM series is a high performance 4K Optical Extender that transmits high resolution DVI signals over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (3840*2160/30p) over cable distances up to 300m.

Order Information

Model	Description
LNK-D4K-MM-S	Mini 4KX2K DVI Fiber Sender Auto EDID,DC5V1A
LNK-D4K-MM-R	Mini 4KX2K DVI Fiber Receiver Auto EDID,DC5V1A


Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID 0

Application

Mini 4KX2K DVI Fiber Transceiver MM 300M Auto EDID 1
